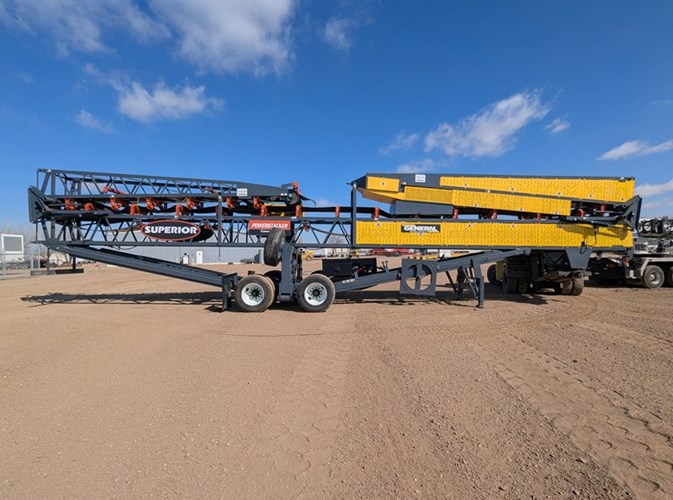

2026 Superior Conveyor - Stacking 30X110PS
Fields with asterisks * are required.
Print This Page
Description
POWERSTACKER CONVEYOR
Inventory ID
E00073572
Serial
2826610
Machine Location
Details
- Inventory ID: E00073572
- Status: On Yard
- Make: Superior
- Model: 30X110PS
- Year: 2026
- Serial#: 2826610
Notes
- SUPERIOR 30" X 110- POWERSTACKER CONVEYOR EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- MAIN FRAME - 36" DEEP TRUSS
- CHORD ANGLES - 4" X 3" X 1/4"
- BOTTOM CHORD ANGLES - BOTTOM CHORD UPSIZED BETWEEN PINPOINTS TO 4"X 3" X 1/2"
- LATTICE MEMBERS - 1-3/4" X 1-3/4" X 3/16"
- CONTAINERIZED - NOT INCLUDED - DRIVE SPECIFICATIONS:
- DRIVE - CLASS II HEAD DRIVE
- GEAR REDUCER - SHAFT MOUNT
- BACKSTOP - INSTALLED IN REDUCER
- MOTOR - 25 HP TEFC
- V-BELT DRIVE - WITH DRIVE GUARD
- CAPACITY - 500 STPH OF 100 PCF MATERIAL 25 DEGREES SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 5" MINUS)
- BELT SPEED - 400 FPM
- DRIVE PULLEY - 18" DIAMET 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY - 16" DIAMETER CEMA CHEVRON WING
- SHAFTS - TURNED AND POLISHED
- BEARINGS - INCLUDED
- TAKE-UP - SCREW TYPE - PORTABILITY:
- CONVEYOR SPLICE - HYDRAULIC TOP FOLDING HEAD AND TAIL WITH INTEGRAL BELT
KEEPER
- UNDERCARRIAGE - HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- AXLE TYPE - FD20 AXLE
- TRANSPORT AXLE - (8) 11R-22.5 TRANSPORT TIRES WITH BRAKES AND MUD FLAPS
- RADIAL AXLE - (2) 385/65D-19.5 TIRES ONHYDRAULIC OUTRIGGERS POWER TRAVEL
(REQUIRES HYD.RAISE)
- RADIAL TRAVEL - (2) 2 HP PLANETARY (ALL WHEEL DRIVE)
- FIFTH WHEEL - FOR ROAD TRAVEL BOLT ON DESIGN
- ANCHOR PIVOT PLATE - MAINTAINS TAIL END DURING RADIAL TRAVEL
- BRAKES - COMPLETE AIR BRAKE PACKAGE
- LIGHTS - BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS - INSTALLED BEHIND TRANSPORT WHEELS
- LANDING GEAR - NOT INCLUDED
- TOWING EYE - PINTLE HITCH TYPE - CONVEYOR COMPONENTS:
- BELTING - 3-PLY 3/16 X 1/16 330PIW
- BELT SPLICE - FACTORY VULCANIZED BELT SPLICE
- SCRAPERS - SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- IDLERS - CEMA C 5" DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL - SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA - 20 DEGREES TROUGH 12-16" SPACING
- TROUGH - 35 DEGREES ON 4" SPACING
- RETURNS - STEEL CANS ON 10- SPACING
- RADIAL HOPPER - ROCK BOX HOPPER
- RADIAL HOPPER LINER - NOT INCLUDED
- GATHERING TROUGH - 5- LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- GUARDING - FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- VOLTAGE - 480 V / 3 PH / 60 HZ
- CORD HOLDERS - (1) SET BENT PIPE STYLE
- CONTROL PANEL PLATE - BRACKET ONLY FOR PANEL AND HYDRAULIC LEVERS
- PAINT - 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT - SAFETY YELLOW
- IDLER PAINT - POWDER COATED SUPERIOR ORANGE
